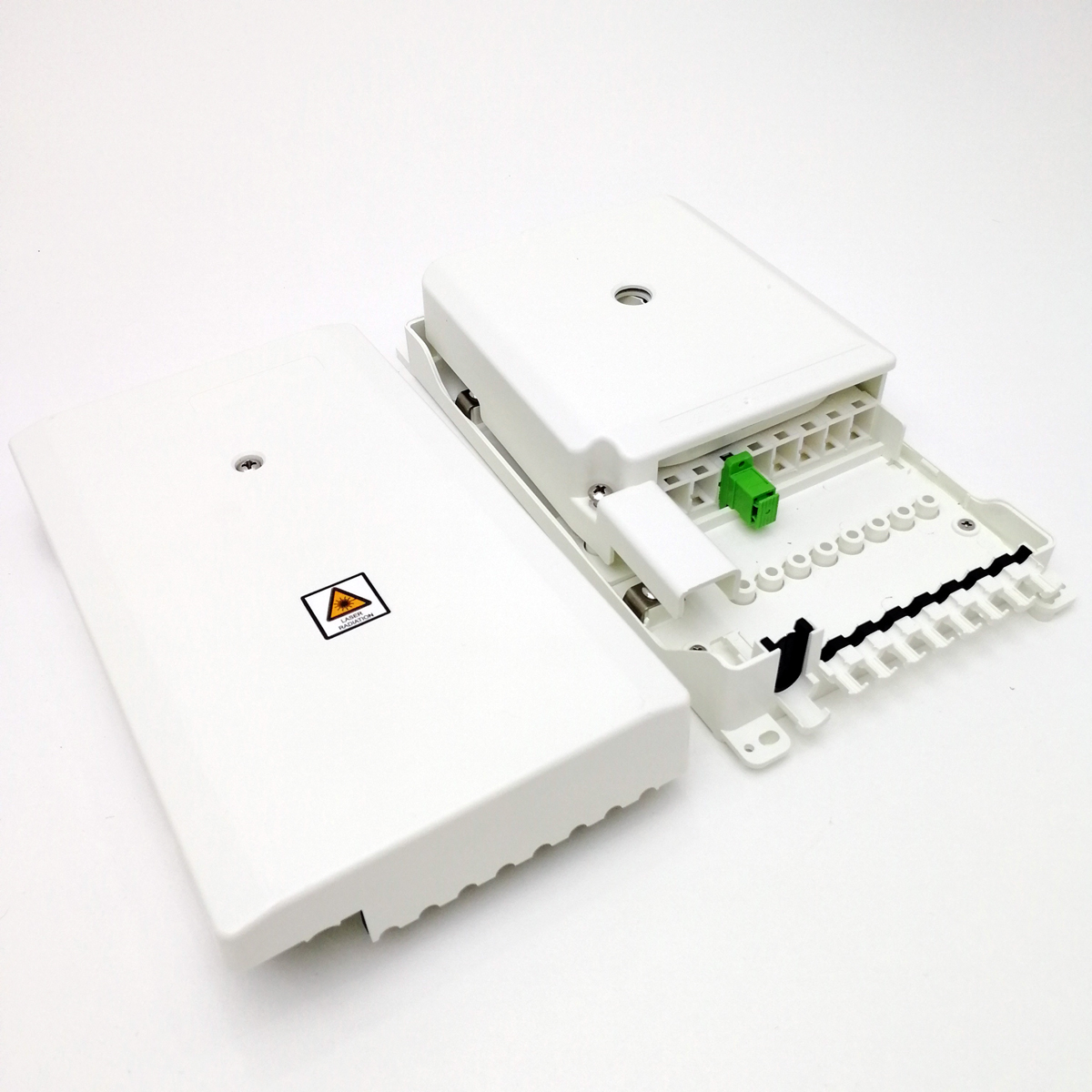

8CORES FIBER ACCESS TERMINAL TYPE T

3C-FAT-8T fiber access termination box is able to hold up to 8 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box

FTTX FIBER MANAGEMENT 8CORES FIBER ACCESS TERMINAL

Water-proof design with IP-66 Protection level. Easy to maintain and extend the capacity. Efficient cable management.

FTTH 8CORES FIBER ACCESS TERMINAL

Water-proof design with IP-66 Protection level.
Integrated with splice cassette and cable management rods. Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity. Fiber bend radius control more than 40mm.
Suitable for the fusion splice or mechanical splice. Efficient cable management.
8 ports cable entrance for drop cable.


MODEL 3C-FAT-8T
Suitable Fiber Type 3.0*2.0 flat able
Cable Diameter  Distribution:12mm Drop:2*3mm
Capacity  8 SC/ 16 LC
IP Grade  IP66
Material PC+ABS
Size(A*B*C) 235*125*50mm
Weight 0.6KG
Suitable Adapter  SC Simplex / LC Duplex
Operating Temperature -40~+85
Color  White
