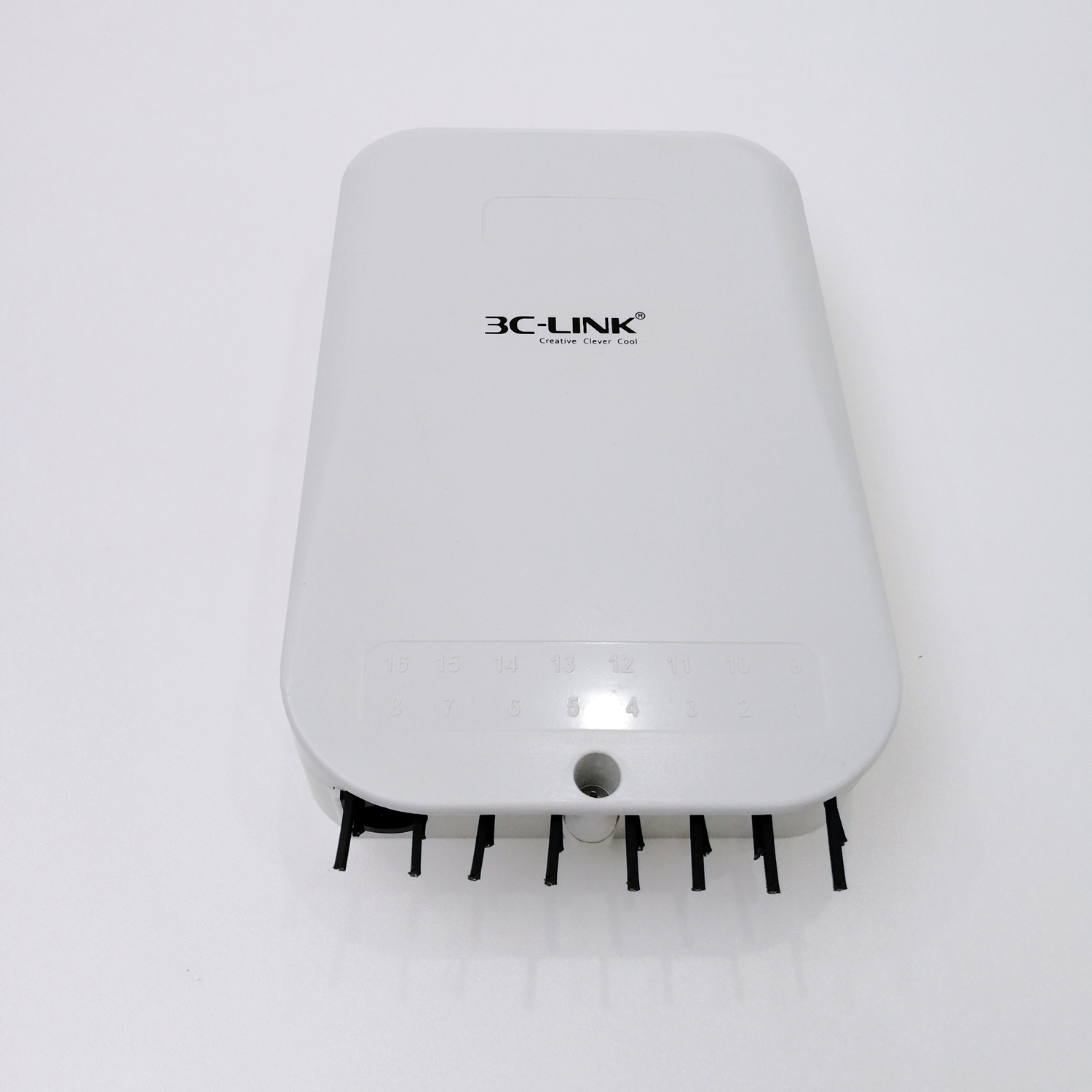

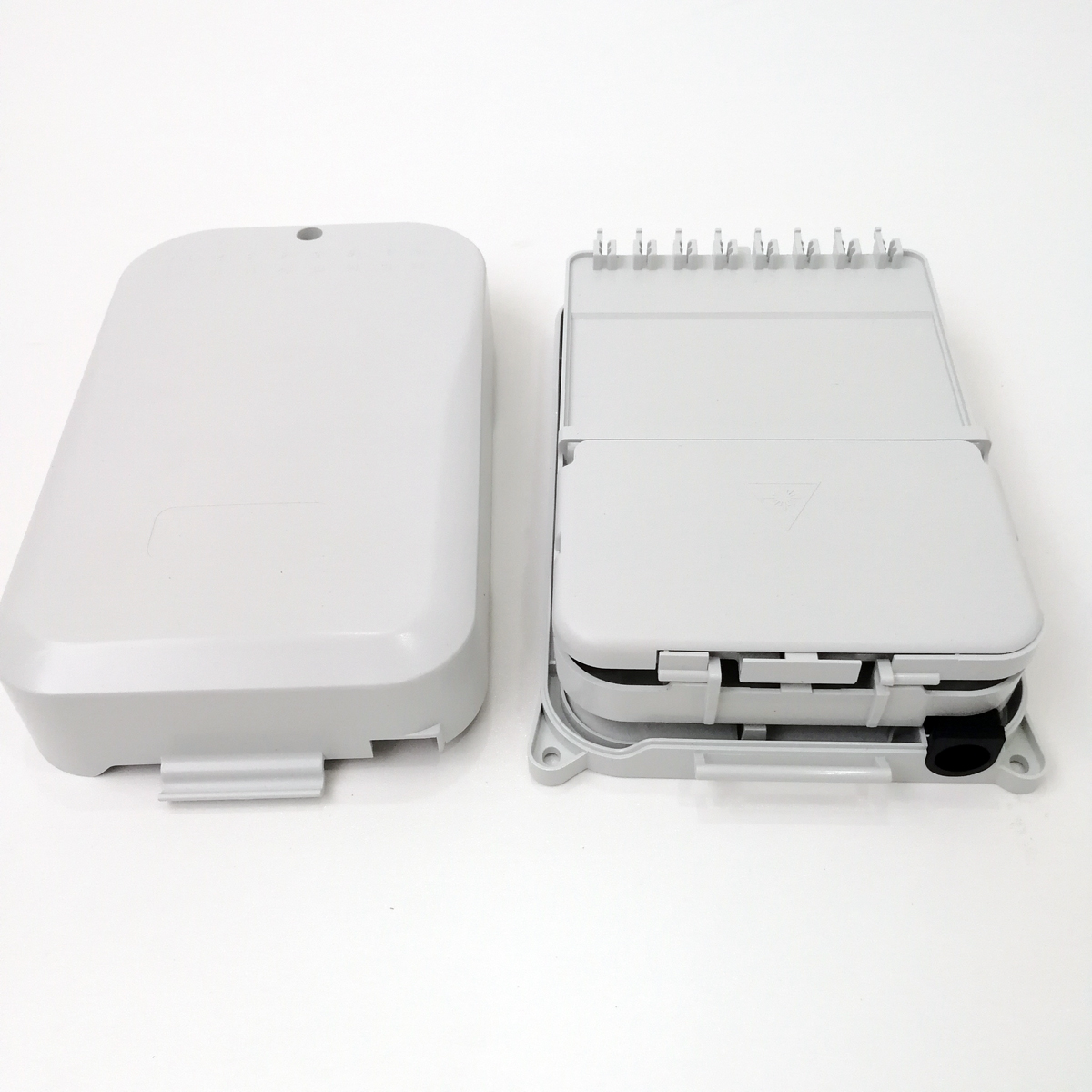

16CORES FIBER ACCESS TERMINAL TYPE T

3C-FAT-16T fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection

FTTX FIBER MANAGEMENT 16CORES FIBER ACCESS TERMINAL

Water-proof design with IP-66 Protection level. Easy to maintain and extend the capacity. Efficient cable management.

FTTH 16CORES FIBER ACCESS TERMINAL

Water-proof design with IP-66 Protection level.

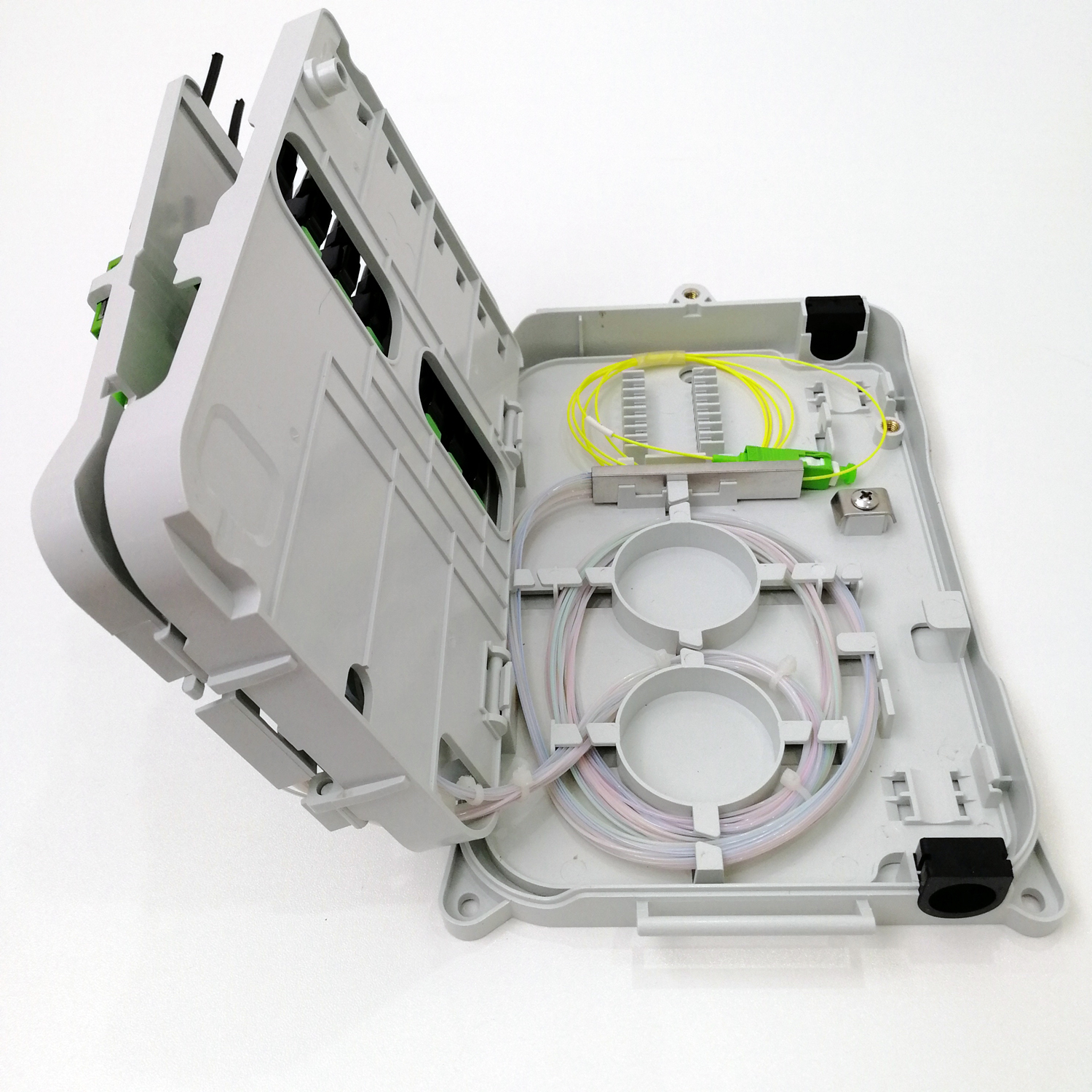

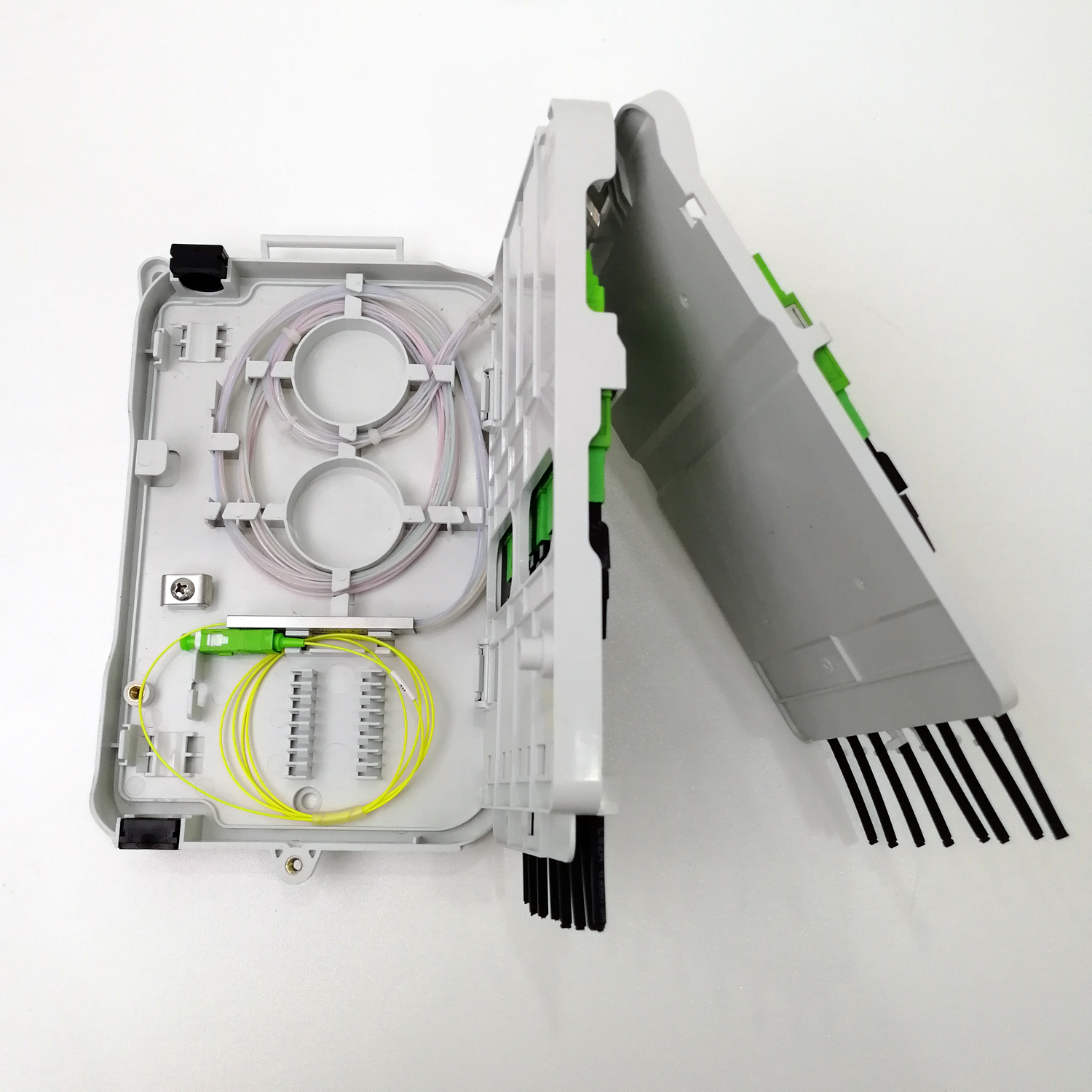

Integrated with splice cassette and cable management rods. Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity. Fiber bend radius control more than 40mm.
Suitable for the fusion splice or mechanical splice. Efficient cable management.
2:1*8 or 1:1*16 Splitter can be installed as an option.

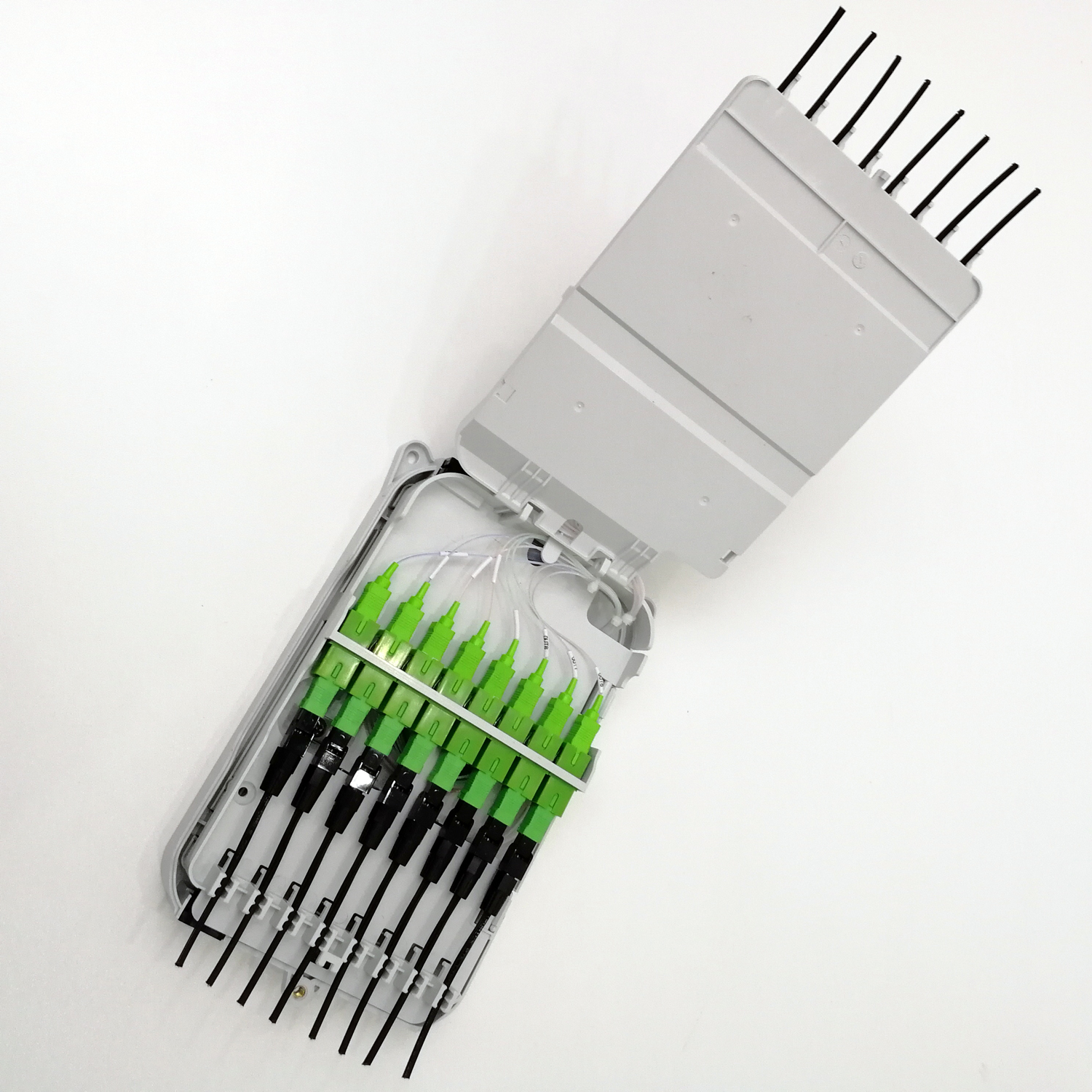

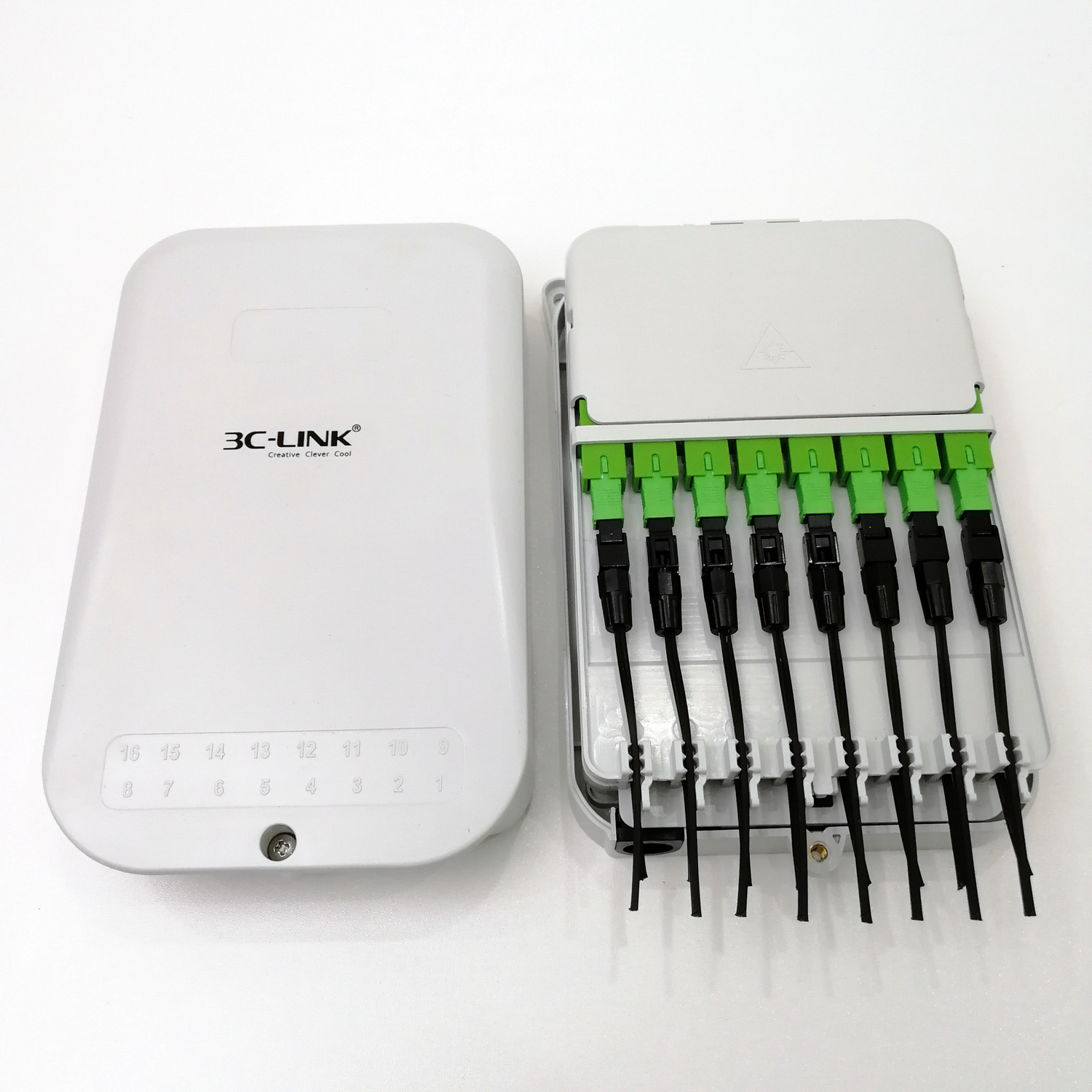

16 ports cable entrance for drop cable.


MODEL 3C-FAT-16T
Suitable Fiber Type 3.0*2.0 flat able
Cable Diameter  Distribution:12mm Drop:2*3mm
Capacity  16SC/ 32LC
IP Grade  IP66
Material PC+ABS
Size(A*B*C) 220*140*55mm
Weight 0.6KG
Suitable Adapter  SC Simplex / LC Duplex
Operating Temperature -40~+85
Color  White
