40G QSFP Breakout AOC Cable

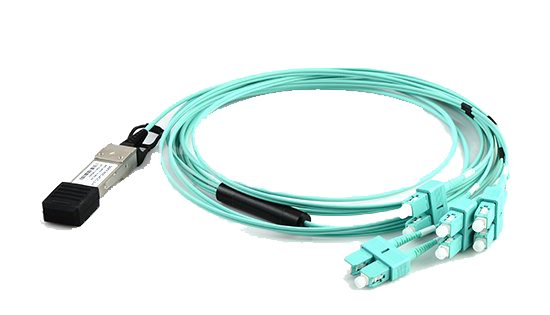

3C-LINK QSFP+ to 8LC/SC Active Optical Cable (AOC) QDR is a high data rate parallel cable, which is designed to overcome the bandwidth limitation of traditional copper cable. It offers 4 independent data transmission channels and 4 data receiving channels via the multimode ribbon fibers, each channel is able to achieve the rate of 10Gb/s.

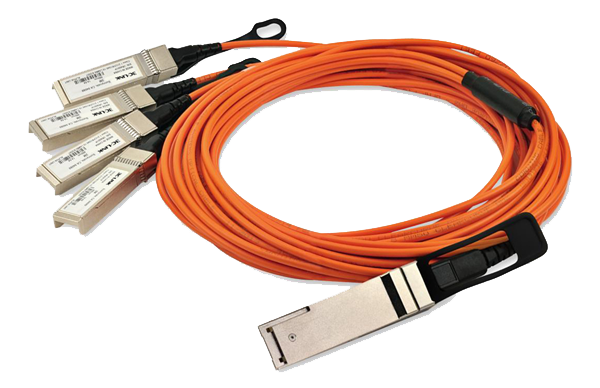

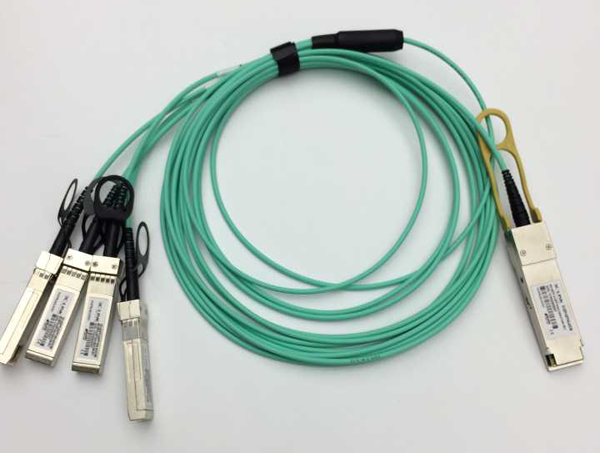

The 3C-LINK QSFP+ to four SFP+ 40Gbps fanout Active Optical Cable is an adaptor cable which provides connectivity between device using QSFP+ port on one end and SFP+ ports on the other end. The integrated cable transmits 4x10Gbps data on the QSFP+ side and 1x10Gbps data on the SFP+ side in duplex over a loose tube fiber with distance up to 100m. The fanout AOC is SFF-8431 (SFP+ side) and SFF-8436 (QSFP+ side) compliance.

Standard Compliance

Electrical: IBTA V2 Revision 1.2.1 and 1.3

IEEE 802.3ba

SFF-8436

SFF-8431

SFF-8432

SFF-8472

SFF-8402

SFF-8665/SFF-8636

InfiniBand 4X SDR, DDR, QDR and FDR
Ethernet 10G, 40G
FiberChannel 10G, 40G, SAN
Rack-to-Rack, Shelf-to-Shelf Interconnect Top of Rack (TOR) Switch
Networking, Storage
Hubs, switches, routers, servers Supercomputer, HPC

40G QSFP+ to 8x LC AOC Cable

P/N

Data Rate
(bps)

Description

Length
(meter)

Cable Type

Power

BER

PDF

3C-QSFP-8LC-10M

40 G

QSFP+ to LC Connetor Optical Cable

10

MMF OM3

<1.05W

<10^(-15)

3C-QSFP-8LC-15M

40 G

QSFP+ to LC Connetor Optical Cable

15

MMF OM3

<1.05W

<10^(-15)

3C-QSFP-8LC-20M

40 G

QSFP+ to LC Connetor Optical Cable

20

MMF OM3

<1.05W

<10^(-15)

3C-QSFP-8LC-30M

40 G

QSFP+ to LC Connetor Optical Cable

30

MMF OM3

<1.05W

<10^(-15)

3C-QSFP-8LC-50M

40 G

QSFP+ to LC Connetor Optical Cable

50

MMF OM3

<1.05W

<10^(-15)

3C-QSFP-8LC-100M

40 G

QSFP+ to LC Connetor Optical Cable

100

MMF OM3

<1.05W

<10^(-15

40G QSFP+ to 4x SFP+ AOC Cable

P/N	Data Rate (bps)	Description	Length (meter)	Cable Type	Power	BER	PDF
3C-QSFP-4SFP-5M	40 G	QSFP+ to 4x SFP+ AOC Breakout Cable	5	MMF OM3	SFP+: <0.35W QSFP+: <1.05W	<10^(-15)
3C-QSFP-4SFP-10M	40 G	QSFP+ to 4x SFP+ AOC Breakout Cable	10	MMF OM3	SFP+: <0.35W QSFP+: <1.05W	<10^(-15)
3C-QSFP-4SFP-50M	40 G	QSFP+ to 4x SFP+ AOC Breakout Cable	50	MMF OM3	SFP+: <0.35W QSFP+: <1.05W	<10^(-15)
