CPRI Duplex LC Fiber RRU RRH Cable

Mobile network operators are required, now more than ever before, to modernize their network infrastructures in order to keep up with continuous high-bandwidth growth. To meet subscriber expectations, many mobile operators are switching from legacy “copper-to-the-antenna” to fiber-to-the-antenna (FTTA) infrastructures. Moreover, to add capacity and coverage for LTE & 5G services, they are deploying distributed antenna system (DAS) networks and small cells. DAS manufacturers are increasingly using the LC Duplex CPRI protocol as the go-to interface between base stations and DAS head-ends.


Water Resistance	UV Resistance	Wear Resistance	Flame Retardance

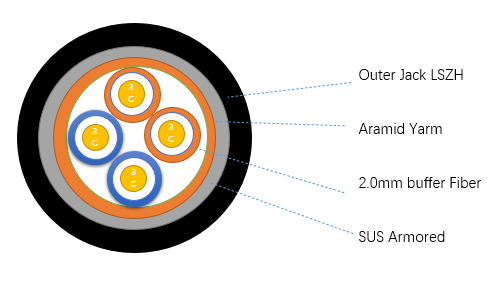

LC/LC FTTA outdoor fiber patch cord NSN Boot CPRI Optic Patch Cord available in 2 core and 4 core combinations can carry control or message signals with minimum loss. FTTA outdoor fiber patch cord is designed for the quick and iterative distributing & retrieving under harsh environment. CPRI LC/LC FTTA cable is can armored with SUS flexible spring tube, portable, flexible, oil-resistant, rubbing-resistant, flame retardant, high tension load and wide operating temperature range. Its applications include quick deployment, military, mining, oil field, TV broadcasting, and communication emergency repair.Ideal for outside cabling application-Armored steel tape for rodent resistance-Pressure resistance-Fully water-blocked-Moisture blocking loose tubes-Fiber 2 core or 4 core

Features

1.Easily add/install jumper cables for a future expansion.
2.Low insertion loss and added loss.
3.Height of attenuation.
4.Flexibility with small bending radius and excellent cable routing properties.
5.End-face geometry and quality superior than IEC and Telcordia standards.
6.The material in the jumpel cable are all-weather and UV-resistant.
7.Mechanical performance: IEC 61754-20 standard.
8.RoHS and REACH materials compliant.

4.8mm diameter	4.8mm diameter

6.8mm diameter	6.8mm diameter

Fiber Type	SM	MM
Connector Type	LC/SC/FC
Insertion Loss(Typical)	0.12	0.12
Insertion Loss(Max)	0.25	0.25
Return Loss	≥ 50dB(UPC)	≥ 35dB
	≥ 60dB(APC)
Durability	(1000 matings) < 0.2dB
Interchangeability	< 0.2dB
Operation Temperature	-40℃ - +75℃
Storage Temperature	-40℃ - +85℃

Type	SM-UPC		SM-APC		MM-UPC
	Typical	MAX	Typical	MAX	Typical	MAX
Insertion loss	≤0.1	≤0.3dB	≤0.15	≤0.3dB	≤0.05	≤0.3dB
Return loss	≥50dB		≥60dB		≥30dB
Durability	500 mating cycles
Working temperature	-40 to + 85℃

1.Multi-purpose Outdoor.

2.For connection between distribution box and RRH(RRU).
3.Deployment in Remote Radio Head cell tower applications.

FTTA & FTTH Base station, BTS installation, BBU to RRU Indoor/outdoor building cabling – Harsh environments application – Long haul networking -Direct burial and aerial lashing
