GYFTY
1B

NON-METALLIC STRENGTH MEMBER NON-ARMORED CABLE（GYFTY）

3C-LINK is a leading global manufacturer of cable systems, which provides package solutions for telecommunication applications around the world. With its rich heritage of highly advanced R&D results, 3C-LINK owns the cutting-edge technology within the industry. 3C-LINK’s optical cables have been sold all over the world, application in more than 50 countries, more than 100,000 km. With the annual production capacity over 500,000 kilometers, as a world-class specialist for special optical cable, 3C-LINK could provide the best products and service to satisfy every customer

GYTA Cable upto 216cores outdoor optical cable

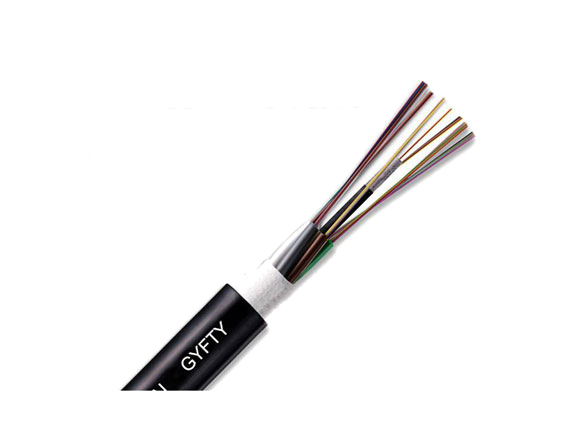

GYFTY fiber optic cable is a non-metallic cable used for power transmission system, excessive thunder areas and high electromagnetic interface. Its mainly application is for aerial or duct use.

GYFTY fiber optic cable is a non-metallic cable used for power transmission system, excessive thunder areas and high electromagnetic interface. Its mainly application is for aerial or duct use.

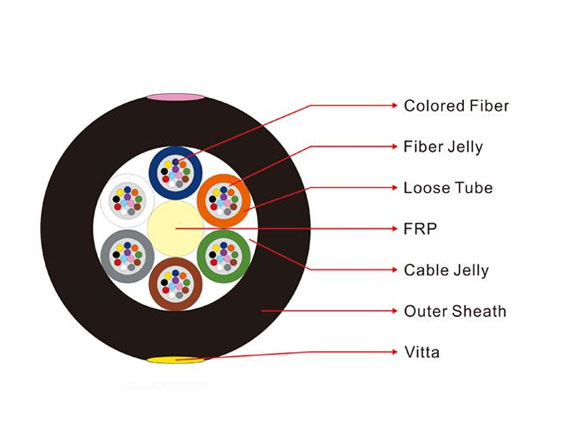

The fibers,  250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.
        · Good mechanical and temperature performance
        · High strength looes tube that is hydrolysis resistant
        · Special tube filling compound ensure a critical protection of fiber
        · Crush resistance and flexibility
        · The following measures are taken to ensure the cable watertight:
                - Single Fiber Reinforced Plastic as the central strength member
                - Loose tube filling compound
                - 100% cable core filling


  Optical Characteristics

  G.652 G.655 50/125μm 62.5/125μm
Attenuation
(+20℃)		 @850nm     ≤3.0 dB/km ≤3.0 dB/km
@1300nm     ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm     ≥500 MHz·km ≥200 MHz·km
@1300nm     ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture     0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm

Technical Parameters
Cable Type Fiber Count Tubes Fillers Cable Diameter
mm		 Cable Weight kg/km Tensile Strength
Long/Short Term N		 Crush Resistance
Long/Short Term
N/100mm		 Bending Radius
Static
/Dynamic
mm
3C-GYFTY-2~6 2~6 1 5 10.6 88 400/1000 300/1000 10D/20D
3C-GYFTY-8~12 8~12 2 4 10.6 88 400/1000 300/1000 10D/20D
3C-GYFTY-14~18 14~18 3 3 10.6 88 400/1000 300/1000 10D/20D
GYFTY -20~24 20~24 4 2 10.6 88 400/1000 300/1000 10D/20D
3C-GYFTY-26~30 26~30 5 1 10.6 88 400/1000 300/1000 10D/20D
3C-GYFTY-32~36 32~36 6 0 10.6 88 400/1000 300/1000 10D/20D
3C-GYFTY-2~6 2~6 1 6 11.0 97 600/1500 300/1000 10D/20D
3C-GYFTY-8~12 8~12 2 5 11.0 97 600/1500 300/1000 10D/20D
3C-GYFTY-14~18 14~18 3 4 11.0 97 600/1500 300/1000 10D/20D
3C-GYFTY-20~24 20~24 4 3 11.0 97 600/1500 300/1000 10D/20D
3C-GYFTY-26~30 26~30 5 2 11.0 97 600/1500 300/1000 10D/20D
3C-GYFTY-32~36 32~36 6 1 11.0 97 600/1500 300/1000 10D/20D
3C-GYFTY-38~42 38~42 7 0 11.0 97 600/1500 300/1000 10D/20D
3C-GYFTY-44~48 44~48 4 2 12.0 113 600/1500 300/1000 10D/20D
3C-GYFTY-50~60 50~60 5 1 12.0 113 600/1500 300/1000 10D/20D
3C-GYFTY-62~72 62~72 6 0 12.0 113 600/1500 300/1000 10D/20D
3C-GYFTY-2~6 2~6 1 7 12.0 120 1000/3000 300/1000 10D/20D
3C-GYFTY-8~12 8~12 2 6 12.0 120 1000/3000 300/1000 10D/20D
3C-GYFTY-14~18 14~18 3 5 12.0 120 1000/3000 300/1000 10D/20D
3C-GYFTY-20~24 20~24 4 4 12.0 120 1000/3000 300/1000 10D/20D
3C-GYFTY-26~30 26~30 5 3 12.0 120 1000/3000 300/1000 10D/20D
3C-GYFTY-32~36 32~36 6 2 12.0 120 1000/3000 300/1000 10D/20D
3C-GYFTY-38~42 38~42 7 1 12.0 120 1000/3000 300/1000 10D/20D
3C-GYFTY-44~48 44~48 8 0 12.0 120 1000/3000 300/1000 10D/20D
3C-GYFTY-50~60 50~60 5 2 13.0 137 1000/3000 300/1000 10D/20D
3C-GYFTY-62~72 62~72 6 1 13.0 137 1000/3000 300/1000 10D/20D
3C-GYFTY-74~84 74~84 7 0 13.0 137 1000/3000 300/1000 10D/20D
3C-GYFTY-86~96 86~96 8 0 13.9 154 1000/3000 300/1000 10D/20D
3C-GYFTY-98~108 98~108 9 1 15.3 185 1000/3000 300/1000 10D/20D
3C-GYFTY-110~120 110~120 10 0 15.3 185 1000/3000 300/1000 10D/20D
