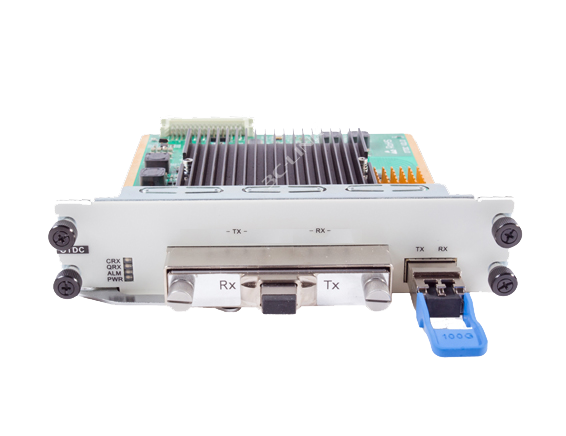

The 3C-LINK DWDM solution offers a high capacity, high performance platform that is open, scalable and highly programmable. The open architecture enables integration with existing line systems as alien wavelengths to enable cost effective bandwidth expansion. 100G QSFP28 to CFP Card service signal OEO is regenerate the connected 1 roads service optical signal. Amplification and signal cleaning and shaping can also realize DWDM CFP and multi-mode conversion of service optical signals. 3C-LINK 100G OEO card can be used as a transponder or as a repeater and regenerator. It provides a range of options for repeating optical data signals, converting them to other optical or electrical formats, or combining multiple fibers onto a single fiber. With transparent bi-directional forwarding capability between the 2 fiber media, the 100G QSFP28 to CFP Card transponder brings you the best and simplest solution for Metro, Regional and Long Haul optical networks. The max support 2000km 100G* 40CH DWDM system.
100G QSFP28 to CFP Card service signal OEO is regenerate the connected 1 roads service optical signal.
* Supports 100G media converter mode * Supports 1+1 facility protection * Comprehensive line and service performance monitoring * Remote management with in-band or out-of-band OSC * Dual AC or DC pluggable power supply and pluggable fan unit * Supports full C-band tunable coherent DWDM on line side * Supports standard CFP 100G pluggable optics
| Product Model | 3C-ONC-OTDC |
| Basic function | Support 1-channel 100G transparent transmission and can convert the 1-channel 100G service signal into a OTU4 optical signal of a standard DWDM wavelength |
| Access service type | 100G Ethernet or 100G OTN |
| Occupied slot number | Occupy 2 slots, applicable to 3C-OTNS8600II or 3C-OTNS8600Ⅴ |
| WDM technology | Support DWDM: C Band, 100GHz or 50GHz |
| 3R technology | Support 3R function: Re-amplifying, Re-timing, Re-shaping |
| Network management function | ● Support real time monitoring of the port working state, including: transmitting optical power and receiving optical power, temperature, etc ● Support port loopback and port shutdown |
| Client-side interface | Support one pluggable optical port QSFP28, with LC or MPO type interface |
| WDM-side interface | Support a 100G port based on CFP(support coherent IPL CFP or 4x25G DWDM CFP), with LC type interface |
| Typical power consumption | 20W |
| MTBF | > 100000 hours |
| Product Name | 3C-CFP-DCO ZR | 3C-CFP-DCOMR | 3C-CFP-DCOLH |
| Data Rate | 100GE/OTU4 | 100GE/OTU4 | 100GE/OTU4 |
| Application | 120km DWDM/P2P | 600km DWDM | 200km DWDM |
| CAUI-4 for 100GBE host interface | √ | √ | √ |
| OTL4.4 for OTU4 host interface | √ | √ | √ |
| Built-in OTN Processing | √ | √ | √ |
| Interoperability with G.709 FEC | √ | √ | √ |
| CFP MSA compliant | √ | √ | √ |
