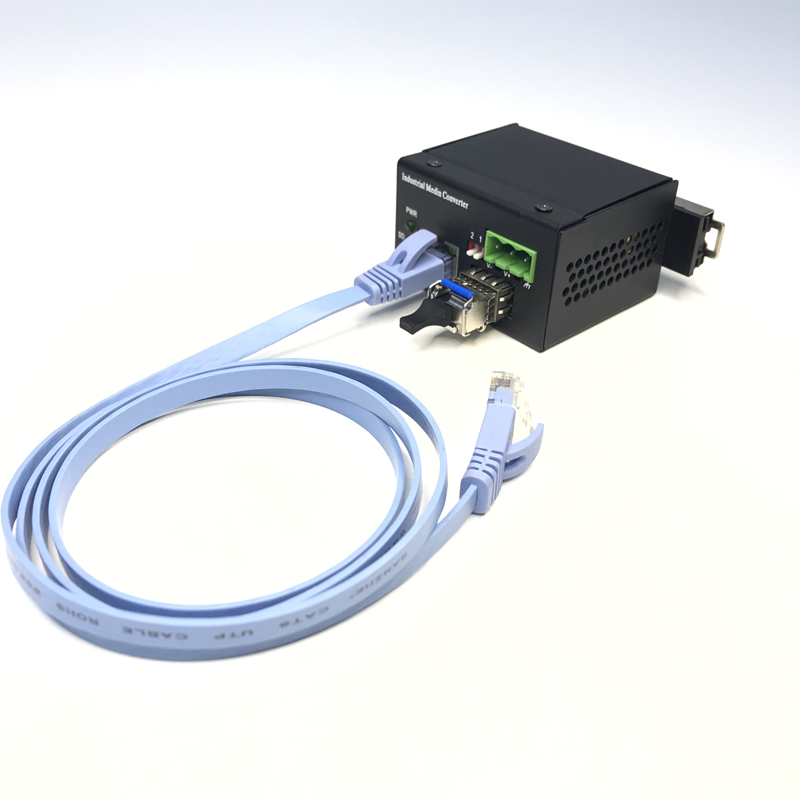

Small Type 10/100/1000M Industrial Media Converter

Fiber-optic Link Capability Extends the Range of Network Deployment

The maximum distance between two IP devices via Ethernet UTP cable is 100 meters. To flexibly extend the deployment range of IP devices, the 3CISI-SFP0101G ’s SFP slot supporting 1000BASE-FX, SFP modules, and more can reach a transmission distance of up to 120km.
Thus, building a network solution of FTTH (Fiber to the Home), FTTC (Fiber to the Curb) for ISPs or FTTB (Fiber to the Building) for enterprises becomes so easy to users when long-distance deployment is employed. The 3CSI-SFP0101G can handle extremely large amounts of data in a secure topology linking to a metro switch, backbone or high-capacity server.

DIP Setting

Small but Tough

The 3CSI-SFP0101G is specifically designed with durable components and strong housing to operate reliably in electrically harsh and climatically demanding environments like plant floors or curbside traffic control cabinets. With wide operating temperature range of -40 to 75 degrees C, the 3CSI-SFP0101G is ideal for service providers, campuses and public areas to deploy outdoor wireless access points, outdoor IP cameras or IP phones in any places easily and efficiently.

Dual Power Input for High Availability Network System

The 3CSI-SFP0101G features a strong dual power input system with wide-ranging voltages (9V~48V DC or 24V AC) incorporated into customer’s automation network to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the 3CSI-SFP0101G via power supply 2 alternatively without any loss of operation.

Low Power Consumption for Green Networking

The 3CSI-SFP0101G, adopting the advanced green networking technology, provides cable length power saving, and link-up and link-down power saving. These features make the 3CSI-SFP0101G consume very low power in full load operation mode, which helps conserve energy effectively but maintains high performance efficiently.

Robust Protection

The 3CSI-SFP0101G provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

Protocol Standard	IEEE802.3, IEEE802.3u, IEEE802.3x
Flow Control	IEEE802.3x flow control, back press flow control
Exchange Attribute	Forwarding Rate: 0.446MppsTransmission Mode: Store and ForwardPacket Buffer Size: 1MSystem Exchange Bandwidth: 0.6Gbps MAC Table Size: 1K Delay Time: < 3μs
Ethernet Port	10/100/1000Base-T(X) auto speed control, Half/full duplex and MDI/MDI-X auto detect
Fiber Port	1000Base-X SFP slot
LED Indicator	Power Indicator: PWRFiber Port Indicator: SDFiber Signal Indicator: LK / ACT
DIP Switch	1.Jumbo Packet2.Link Fault Pass Through(LFP)
Power Supply	Input Voltage: DC10-55VConnector: 3 bit 5.08mm Removable terminal blockFull Load: <2WProtection Mechanism: Overload Protection / Reverse Connection Protection / Redundancy Protection

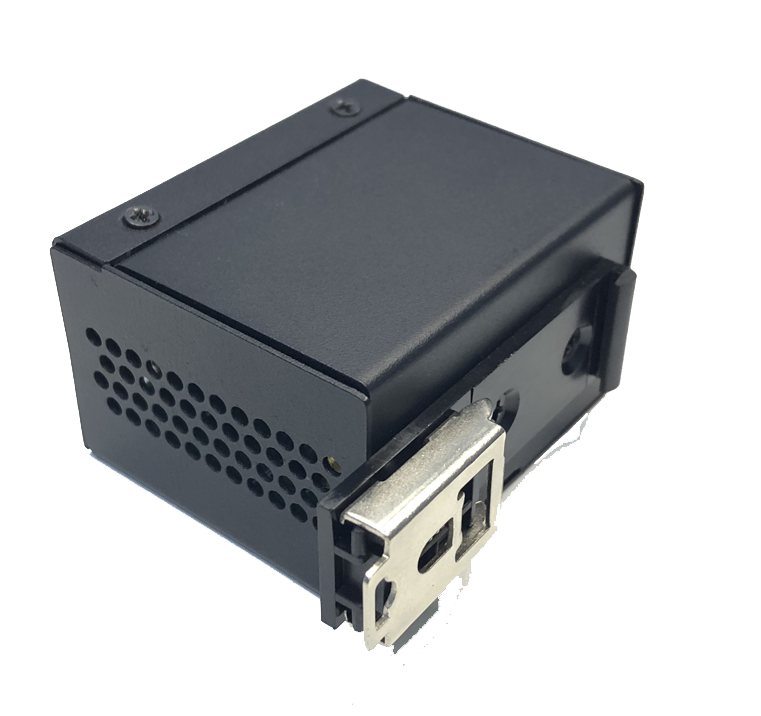

Mechanical Structure	Shell: IP40 protection, Aluminum-alloy shell Dimension: 593649mm( LWH ) Weight: 150g Installation: DIN-rail mounting, wall mounting
Working Environment	Operating Temperature: -40 to 85°C Storage Temperature: -40 to 85°C Ambient Relative Humidity: 5% to 95% (non-condensing)
Industry Standards	EMI:FCC Part 15 Subpart B Class A, EN 55022 Class A EMS:EN61000-4-2 (ESD), Level 4 at 15kV(Air), 8kV(Contact) EN61000-4-3 (R/S), Level 3 at 10V/m EN61000-4-4 (EFT), Level 4 at 4kV(Power Port), 2kV(Date Port) EN61000-4-5 (Surge), Level 4 at 4kV EN61000-4-6 (CS), Level 3 at 10V/m EN61000-4-8, Level 5 at 100A/m Shock:IEC 60068-2-27 Free Fall:IEC 60068-2-32 Vibration:IEC 60068-2-6
Certification	CE, FCC, RoHS
MTBF	>100,000 Hours
Warranty	5-years

3CSI-DU-1000-85-0.55	10/100/1000BASE-T to 1000BASE-SX Media Converter (SC,MM)-220/550m, 12V-48V, Small Type. Industrial type
3CSI-DU-1000-13-10	10/100/1000BASE-T to 1000BASE-LX Media Converter (SC,SM)-10km, 12V-48V, Small Type. Industrial type
3CSI-DU-1000-13-40	10/100/1000BASE-T to 1000BASE-LX Media Converter (SC,SM)-40km, 12V-48V, Small Type. Industrial type
3CSI-SFP0101G	10/100/1000BASE-T to 100/1000BASE-X Media Converter (mini-GBIC, SFP)-distance depend on SFP module, 12V-48V, Small Type. Industrial type
3CSI-WD-1000-35-15	10/100/1000BASE-T to 1000BASE-LX (WDM) Media Converter TX:1310nm~15km, 12V-48V, Small Type. Industrial type
3CSI-WD-1000-53-15	10/100/1000BASE-T to 1000BASE-LX (WDM) Media Converter TX:1550nm~15km, 12V-48V, Small Type. Industrial type
3CSI-WD-1000-35-60	10/100/1000BASE-T to 1000BASE-LX (WDM) Media Converter TX:1310nm~60km, 12V-48V, Small Type. Industrial type
3CSI-WD-1000-53-60	10/100/1000BASE-T to 1000BASE-LX (WDM) Media Converter TX:1550nm~60km
