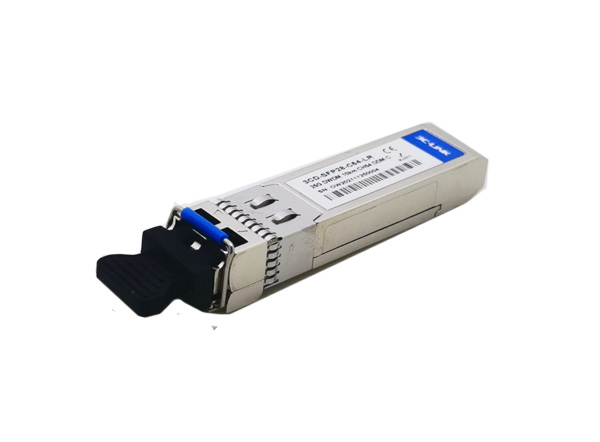

25G DWDM SFP28 10Km Tunable Transceiver

3CT-SFP28-XX-LR DWDM Tunable transceiver, also known as 25G DWDM Tunable SFP28 10km Transceiver, is SFP28 tunable module for duplex optical data communications, supporting up to 25.78Gb/s. The 25G tunable DWDM products, with 100GHz channel spacing, support 48 channels (191.3~196.0THz) wavelength adjustment. It is also with the SFP28 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. It has built-in clock and data recovery (CDR). This module is designed for single-mode fiber.

25G DWDM SFP28 10Km Tunable Transceiver

Featured with low-power, high-density and high-speed, the SFP28 transceiver offers a popular way to help you quickly ramp up to 25G transmission

3CT-SFP28-XX-LR is a high performance, cost effective modules, which is supporting Multi Rate 9.8304 Gbps to 25.78125Gbps, and transmission distance up to 15km on SM fiber. The transceiver consists of two sections: The transmitter section incorporates a laser driver and a DSDBR TTOSA. The receiver section consists of a PIN integrated with a transimpedance preamplifier (TIA) and a Limitting Amplifier. The module is hot pluggable into the 20-pin connector. The high-speed electrical interface is base on low voltage logic, with nominal 100Ohms differential impedance and AC coupled in the module.

  • PIN receiver with CDR

  • Up to 15km transmission on SMF

  • Up Support Multi Rate 9.8304 ~ 25.78125Gbps

  • 50GHz ITU-based channel spacing (C-Band) with a wavelength locker

  • SFI electrical interface

  • Support wavelength self-negotiation

  • Support Rate selection

  • 2-wire interface for integrated Digital Diagnostic monitoring

  • SFP+ MSA package with duplex LC connector

  • Hot pluggable

  • Very low EMI and excellent ESD protection

  • +3.3V power supply Power consumption less than 2.5W @85℃

  • Operating case temperature: -20~+85°C


Model  3CT-SFP28-XX-LR
Vendor Name		 3C-LINK
Form Factor
SFP28		 Max Data Rate 25.78Gbps
Wavelength DSDBR TTOSA C-BAND Max Cable Distance 10Km
Connector LC DX Fiber  SMF
Transmitter Type DFB 1310nm Receiver Type PIN
DDM/DOM Yes Commercial Temperature Range 0 to 70°C (32 to 158°F)
TX Power
-2~4dBm
Receiver Sensitivity		 <-13dBm
Power Consumption 1W Extinction Ratio 2dB
Modulation Format NRZ
Powerbudget
12dB
Packaging Technology TO-CAN Packaging FEC Function
Supported
Protocols MSA Compliant, CPRI, eCPRI Application
25GBASE Ethernet,

Remark: 40km, 60km, 80km, 100km the TX Power and RX SEN is difference, please check order information PDF for detail.



High Performance

Low power consumption <1W, saving power

100us typical latency, MTBF over over 1 million hours

Stainless steel material, anti-corrosion and salt spray resistance


Wide Application

Fully compatible with almost all Cisco devices

Widely used on Fast Ethernet switches, routers, servers, NICs and other transmission equipment

Suitable for Enterprise LAN Networks and other cooper networking connections


Protocols and Safety Standards

Class B EMC, IEC 61000-4-2 Anti Electro-Static Discharge and IEC61000-4-3 Radiation Resistant

IEEE Std 802.3u and 802.3ab, SFP MSA Compliant

Lifetime Warranty

All the fiber optic products in 3C-LINK are fully warranted against defects in material and workmanship with a lifetime guarantee. This warranty does not cover damage caused by accident, improper care, improper use, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use.
