CWDM/DWDM Mux/Demux Module

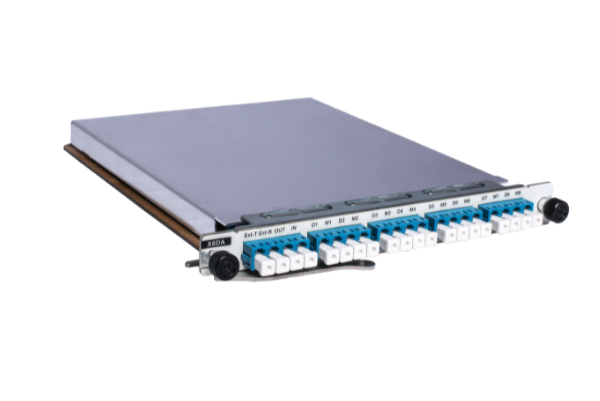

CWDM MUX /DEMUX Card supports up to 18 wavelength channels transmitted through a fiber at the same time. To achieve this, the different wavelengths of each channel are 20nm apart. DWDM MUX/DEMUX Card, supports up to 80 simultaneous wavelength channels, with each of the channels only 0.8nm apart. CWDM technology offers a convenient and cost-efficient solution for shorter distances of up to 70 kilometers. For distances between 40 and 70 kilometers, and DWDM can upto more than 2000Km distances and the datar-rate can reach 400Gbps each channles based on at present 3C-LINK tehcnology.

Product features

Low insertion loss (IL)
High channel isolation
High stability and reliability
Provide 1 to 18 channels

Function	Note
Optical channel number	2	4	8	16	18
Channel insertion loss	≤1.2dB	≤1.8dB	≤2.6dB	≤4.5dB	≤5.0dB
Occupied slot number	Support OTNS8600 series chassis, occupy 1 slot			Support OTNS8600 series chassis, occupy 2 slot
Working wavelength range	CWDM: 1271nm~1611nm DWDM: C Band（100GHz）
Channel center wavelength	ITU-T Grid
Line-side fiber number	Supports single-fiber or dual-fiber application on the line side.
Flatness	≤0.5dB
Isolation ratio of adjacent channel	≥30dB
Isolation ratio of non-adjacent channel	≥45dB
Return loss	≥50dB
Directivity	≥55dB
Optical interface	LC/UPC
Max power consumption	3W
MTBF	＞100000 hours

Model	Spec	PDF
3C-ONC-M8CA	1270nm to 1410nm CWDM MUX, LC/UPC interface . Card
3C-ONC-D8CA	1410nm to 1270nm CWDM DeMUX, LC/UPC interface . Card
3C-ONC-M8CB	1470nm to 1610nm CWDM MUX, LC/UPC interface . Card
3C-ONC-D8CB	1610nm to 1470nm CWDM DeMUX, LC/UPC interface . Card
3C-ONC-M16C	1310nm to 1610nm CWDM MUX, LC/UPC interface . Card
3C-ONC-D16C	1610nm to 1310nm CWDM DeMUX, LC/UPC interface . Card
3C-ONC-X08CA	1270nm to 1410nm CWDM MUX+1270nm to 1410nm CWDM DeMUX , LC/UPC interface . Card
3C-ONC-X08CB	1470nm to 1610nm CWDM MUX+1470nm to 1610nm CWDM DeMUX , LC/UPC interface . Card
3C-ONC-M8DA	C21 to C28 DWDM MUX, LC/UPC interface . Card
3C-ONC-D8DA	C28 to C21 DWDM DeMUX, LC/UPC interface . Card
3C-ONC-M8DB	C29 to C36 DWDM MUX, LC/UPC interface . Card
3C-ONC-M8DC	C37 to C44 DWDM MUX, LC/UPC interface . Card
3C-ONC-M8DD	C45 to C52 DWDM MUX, LC/UPC interface . Card
3C-ONC-M8DE	C53 to C60 DWDM MUX, LC/UPC interface . Card
3C-ONC-X8DA	C21 to C28 DWDM MUX, C21 to C28 DWDM DeMUX,LC/UPC interface . Card
3C-ONC-B8DAB	C21 to C28 DWDM MUX C29 to C36 DWDM MUX,BI-DI LC/UPC interface . Card , LC/UPC interface . Card
3C-ONC-M16DA	C21 to C36 DWDM MUX, LC/UPC interface . Card
3C-ONC-D16DA	C36 to C21 DWDM DeMUX, LC/UPC interface . Card
3C-ONC-M16DB	C37 to C52 DWDM MUX, LC/UPC interface . Card
3C-ONC-D16DB	C52 to C37 DWDM DeMUX, LC/UPC interface . Card
