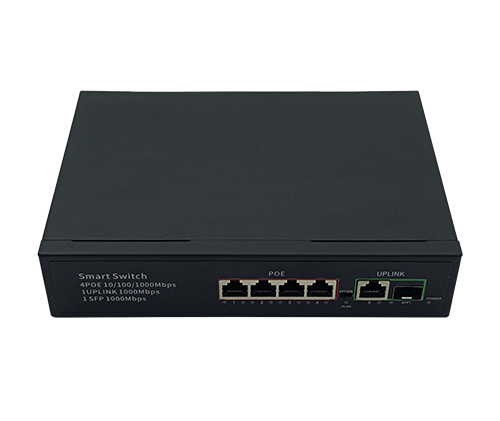

3C-S010104PG series switches provide from one network node uses Cat5 cable simultaneous transmission of data and power, when AC power is not power or take power inconvenient (such as PTZ cameras and WiMAX devices), 3C-S010104PG series is designed for wireless networks, security automation applications. 3C-S010104PG series switches dramatically reduces the cost of wiring the power user, wireless LAN access points, video surveillance cameras and other equipment must be spent to better support the new services and applications, providing users with a higher flexibility and mobility. Advanced self-sensing algorithm only for standard PD terminal equipment power supply, and therefore do not need to worry about damage to private or non-standard PoE PoE equipment. Simple and reliable design, 3C-S010104PG series of automatic identification PoE requirements, speed, duplex, and use Auto Up link TM type of cable.
Support 4*100/1000mbps POE port;1*100/1000mbps UP Link port;1*100/1000mbps SFPPoE power supply distance 100m, Watchdog function.Supports Quality of Service (QoS),EEE802.3AF/AT, Support Vlan.All port supported by MDI/MDIX auto flip and self negotiation
3C-S010104PG series switches dramatically reduces the cost of wiring the power user, wireless LAN access points, video surveillance cameras and other equipment must be spent to better support the new services and applications, providing users with a higher flexibility and mobility.
 |
 |
Advanced self-sensing algorithm only for standard PD terminal equipment power supply, and therefore do not need to worry about damage to private or non-standard PoE PoE equipment. Simple and reliable design, 3C-S010104PG series of automatic identification PoE requirements, speed, duplex, and use Auto Up link TM type of cable.
3C-LINK 3C-S010104PG provides Standard, VLAN and Extend operation modes. The 3C-S010104PG operates as a normal IEEE 802.3af/at PoE Switch in the Standard operation mode. The VLAN operation mode features the port-based VLAN function that can help to prevent the IP camera’s multicast or broadcast storm from influencing each other.
|
Product |
4+1+1 Port POE Switch (Built-in) |
|
Model |
3C-S010104PG |
|
POE Port |
1 to 4 support IEEE802.3AF/AT Standard |
|
UP link port |
5thport support 1000Mbps |
|
Fiber Port |
1000M fiber port |
|
Output Power |
15.4W/30W IEEE802.3af/at |
|
Power Pin |
Both 1/2+、3/6- and 4/5+7/8- |
|
Whole Power |
≤78W (52V 1.5A) |
|
POE Protocol |
IEEE 802.3af/IEEE 802.3at |
|
POE Type |
End-span |
|
Power Distance |
≤100m |
|
Network Standard |
IEEE 802.3、 IEEE802.3u、802.3x、802.3af/at |
|
Network Medium |
10/100BASE-TX:5 class and above non shielded twisted pair |
|
Data Distance |
≤100m |
|
Switch Capability |
12Gbps |
|
Forwarding Mode |
Store and forward |
|
Forwarding Rate |
10BASE-T:14880PPS/port 100BASE-tx：14800pps/port 1000BASE-tx：1488095pps/port |
|
MAC Address |
MAC address table 2K |
|
Port Function |
Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
|
LED Indicator |
Each port occupied 1 LINK/ACT.100Mbps, POE Status Indicator, Whole power indicator |
|
Working Environment |
Working temperature：-10°-- 55°C |
|
Weight |
1.5kg |
|
Size |
202mm*140mm*45mm(L*W*H) |
