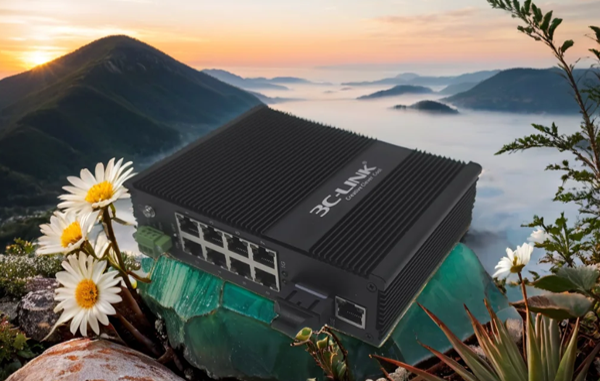

3CI-S0108GH-13-20 is a plug-and-play unmanaged industrial Ethernet switch, which can provide economical solution for your Ethernet. Its dust-proof fully sealed structure(IP40 protection grade), over-current, over-voltage and EMC protected, redundant double power input as well as built-in intelligent alarm design can help system main tenancy personnel monitor the network operation, which can work reliably in harsh and dangerous environment. 3CI-S108GH-13-20 support 100/1000M 20KM duplex SC and 8 10/100Base-T(X) Ethernet port. It support CE, FCC, RoHS standard, rugged high-strength metal case, power input (DC10-58V). The switch support IEEE802.3, IEEE802.3u, IEEE802.3x with 10/100Base-T(X), full/half-duplex, and MDI/MDI-X auto-adaptation, the -40-85℃ operating temperature can meet all kinds of industrial environment requirement, providing reliable and economic solution for your industrial Ethernet network.
Support 100/1000Base-X SFP slot or Fix type 100/1000M SC and 8 10/100Base-T(X) Ethernet port. Support IEEE802.3, IEEE802.3u, IEEE802.3x. Plug-and-play, 10/100Base-T(X), full/half duplex, MDI/MDI-X auto-adaptation. Industrial chip design, 15kV ESD protection, 8kV surge protection
 |
 |
|
Protocol Standard |
IEEE802.3, IEEE802.3u, IEEE802.3x |
|
Flow Control |
IEEE802.3x flow control, back press flow control |
|
Switching Performance |
Forwarding Rate: 4.16MppsTransmission Mode: Store and ForwardPacket Buffer Size: 1MBackplane Bandwidth: 5.6Gbps
MAC Table Size: 8K Delay Time: < 4μs |
|
Ethernet Port |
10/100Base-T(X) auto speed control, full/half duplex and MDI/MDI-X auto-adaptation |
|
Fiber Port |
1000Base-X SFP slot/ SC Duplex or Simplex Fix type |
|
LED Indicator |
Power Indicator: PWRPort Indicator: LINK / ACT |
|
Power Supply |
Input Voltage: DC10-58VConnector: 6 bit 5.08mm removable terminal blockFull Load: <5WProtection Mechanism: overload protection, reverse connection protection, redundancy protection |
|
Mechanical Structure |
Shell: IP40 protection, aluminum alloy housingDimension: 143*104*48mm( L*W*H )Weight: 550gInstallation: DIN-Rail mounting, wall mounting |
|
Operating Environment |
Operating Temperature: -40-85°CStorage Temperature: -40-85°CAmbient Relative Humidity: 5%-95% (non-condensing) |
|
Industry Standards |
EMI:FCC Part 15 Subpart B Class A, EN 55022 Class AEMS:EN61000-4-2 (ESD), Level 4 at 15kV(Air), 8kV(Contact)EN61000-4-3 (R/S), Level 3 at 10V/mEN61000-4-4 (EFT), Level 4 at 4kV(Power Port), 2kV(Date Port)
EN61000-4-5 (Surge), Level 4 at 4kV EN61000-4-6 (CS), Level 3 at 10V/m EN61000-4-8, Level 5 at 100A/m Shock:IEC 60068-2-27 Free Fall:IEC 60068-2-32 Vibration:IEC 60068-2-6 |
|
Certification |
CE, FCC, RoHS |
|
MTBF |
>100,000 Hours |
|
Warranty |
3-years |
