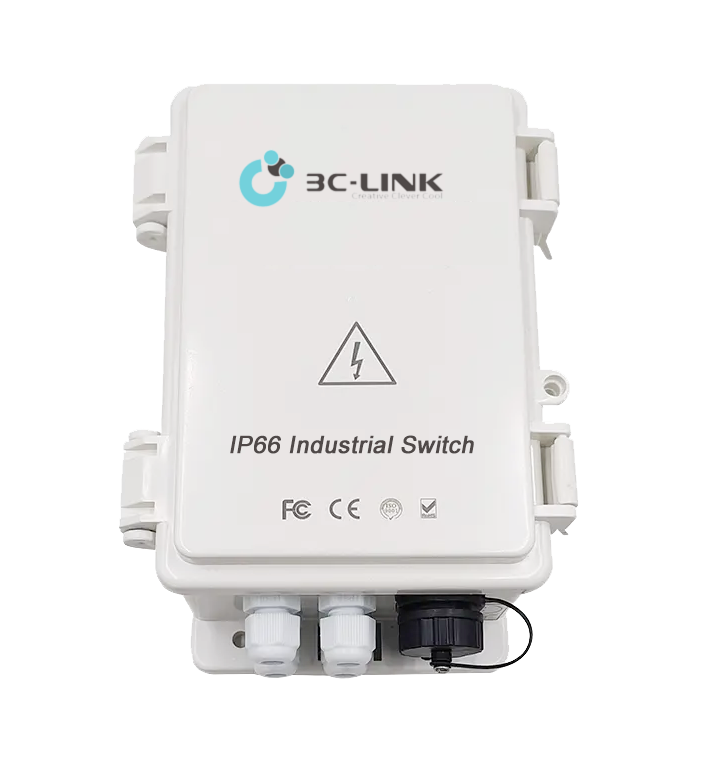

3CO-S0104G is a outdoor waterproof industrial switch, which realises the conversion between the electrical and optical interfaces of Ethernet, and is configured with 4 10/100/1000M Ethernet electrical ports and 1 Gigabit optical port. It is used in underground comprehensive pipeline corridors, offshore drilling platforms, high humidity and salt spray seashores, tunnel and other industrial sites. The optical port extends the Ethernet transmission distance from 100m on copper cable to 550m (multi-mode fibre) or 100km (single-mode fibre). The device adopts wall-mounted ABS + aluminium profile heat dissipation chassis, DC power input, IP66 protection level, -20 ~ +85 ℃ wide operating temperature, to ensure long-term stability, reliability and safe use in a variety of harsh environments (such as high temperature, low temperature, dust, electromagnetic interference, etc.
outdoor waterproof industrial switch, which realises the conversion between the electrical and optical interfaces of Ethernet, and is configured with 4 10/100/1000M Ethernet electrical ports and 1 Gigabit optical port.
|
Protocol Standard |
|
|
Ethernet protocol |
IEEE802.3 (Ethernet), IEEE802.3u (100Base-TX and 100Base-FX), IEEE802.3z (1000Base-TX and 1000Base-X), IEEE802.3x (Flow control) |
|
Connector |
|
|
Gigabit Fiber Port |
Quantity: 1; Interface: fixed fiber port (default SC connector, single mode / multimode optional); Interface rate: 1000Base-X; |
|
Gigabit Ethernet Port |
Quantity: 4; Interface: RJ 45 ethernet port; Interface rate: 10 / 100 / 1000M adaptive port; |
|
Power Interface |
Waterproof power interface |
|
Transmission Distance |
|
|
Twisted-pair |
100m (standard CAT 5 / CAT 5 e cable) |
|
Fibre-optical |
Multi-mode fiber: 550m; single-mode fiber: 20 / 40 / 60 / 80 / 100km; |
|
Switching characteristics |
|
|
Transmission mode |
Storage and forwarding (full-line speed) |
|
Backboard bandwidth |
10Gbps |
|
Package forwarding rate |
37.4Mpps |
|
Mac address list |
4K, automatic learning |
|
Power Features |
|
|
Input voltage |
DC9～48V |
|
Full of power consumption |
＜5W |
|
Wiring Method |
Waterproof power interface |
|
Overload protection |
Support |
|
Anti-connection protection |
Support |
|
Supporting power supply |
No, the adapter should be purchased separately |
|
Work environment |
|
|
working temperature |
-20～85℃ |
|
Storage temperature |
-40～85℃ |
|
relative humidity |
5%~95% (no condensation) |
|
Mechanical properties |
|
|
Shellcase |
ABS + aluminum alloy radiator case (fanless design) |
|
Levels of protection |
IP66 |
|
Way to install |
wall-mount type |
|
Size |
L * W * H: 195110 75(mm) |
|
Weight |
455g |
|
Industry standard |
|
|
EMI |
FCC CFR47 Part 15,EN55022/CISPR22,Class A |
|
EMS |
EN61000-4-2 (ESD)，Level 4EN61000-4-3 (RS)，Level 3 EN61000-4-4 (EFT)，Level 4EN61000-4-5 (Surge)，Level 4 EN61000-4-6 (CS)，Level 3EN61000-4-8，Level 5 |
|
Under attack |
GB/T2423.5-1995 |
|
Free-fall |
GB/T2423.5-1995 |
|
Strongly affect |
GB/T21563-2008/IEC61373：1999 |
|
Product certification and quality assurance |
|
|
Product certification |
CE；FCC；ROSH ISO9001；ISO45001；ISO14001 |
|
Warranty |
3 years, lifetime maintenance; |
